transfer functions

the response [output $Y(s)$] of a linear, time-invariant system to any input [$U(s)$] is characterized by a transfer function $g(s)=Y(s)/U(s)$.

constructing a transfer function

we use a data structure, TransferFunction, to represent a transfer function. for example, consider the transfer function $g(s)=\dfrac{5s+1}{s^2 + 4s+5}$.

we can construct $g(s)$ in an intuitive way that resembles the algebraic expression:

g = (5 * s + 1) / (s ^ 2 + 4 * s + 5) # way 1

alternatively, we can construct a TransferFunction using the coefficients associated with the powers of $s$ in the polynomials composing the numerator and denominator, respectively, of $g(s)$. The coefficients of the highest powers of $s$ go first.

g = TransferFunction([5, 1], [1, 4, 5]) # way 2

note that, under the hood, we defined s such that s == TransferFunction([1, 0], [1]).

as rational functions associated with a time delay, each TransferFunction data structure has a numerator (a polynomial in :s), denominator (a polynomial in :s), and time_delay (a real number) attribute. access these attributes as follows:

g.numerator   # 5s + 1, a `Poly`
g.denominator # s² + 4s + 5, a `Poly`
g.time_delay  # 0.0, a `Float64`

g.numerator and g.denominator are Poly types from the package Polynomials.jl.

time delays

to construct a transfer function with a time delay, such as: $g(s)=\dfrac{3}{2s+1}e^{-2s}$

θ = 2.0                              # time delay
g = 3 / (2 * s + 1) * exp(-θ * s)    # way 1
g = TransferFunction([3], [2, 1], θ) # way 2

zeros, poles, k-factor representation

we can write any transfer function $g(s)$ in terms of its poles ($p_j$), zeros ($z_j$), k-factor ($k$), and time delay ($\theta$):

\[g(s)=k\dfrac{\Pi_j (s-z_j)}{\Pi_j(s-p_j)}e^{-\theta s}\]

the scalar factor $k$ allows us to uniquely specify a transfer function in terms of its poles, zeros, and time delay. note that the $k$-factor is not equal to the zero-frequency gain.

for example:

\[g(s)=\dfrac{5s+1}{s^2 + 4s+5}=5\dfrac{(s+1/5)}{(s+2+i)(s+2-i)}\]

construting a transfer function from its zeros, poles and k-factor

g = zeros_poles_k([-1/5], [-2 + im, -2 - im], 5.0, time_delay=0.0)  # way 3

the im is the imaginary number $i$. see the Julia docs on complex numbers.

computing the poles, zeros, and k-factor of a transfer function

g = (5 * s + 1) / (s ^ 2 + 4 * s + 5)
zeros_poles_k(g) # [-0.2], [-2-im, -2+im], 5

transfer function algebra

we can add +, subject -, multiply *, and divide / transfer functions.

g₁ = 3 / (s + 2)
g₂ = 1 / (s + 4)

g_product = g₁ * g₂ # 3 / (s^2 + 6s + 8)

g_sum = g₁ + g₂     # (4s + 14) / (s^2 + 6s + 8)

evaluate a transfer function at a complex number

for example, to evaluate $g(s)=\dfrac{4}{s+2}$ at $s=1-i$:

g = 4 / (s + 2)
evaluate(g, 2 * im) # 1 - im

zero-frequency gain of a transfer function

compute the zero-frequency gain of a transfer function $g(s)$, which is $g(s)$ evaluated at $s=0$, as follows:

g = (5 * s + 1) / (s ^ 2 + 4 * s + 5)
zero_frequency_gain(g) # 0.2

the zero-frequency gain is the ratio of the steady state output value to the steady state input value (e.g., consider a step input). note that the zero-frequency gain could be infinite or zero, which is why we do not have a function to construct a transfer function from its zeros, poles, and zero-frequency gain.

poles, zeros, and zero-frequency gain of a transfer function

compute the poles, zeros, and zero-frequency gain of a transfer function all at once as follows:

g = (5 * s + 5) / (s ^ 2 + 4 * s + 5)
z, p, gain = zeros_poles_gain(g)
# z = [-1.0]
# p = [-2-im, -2+im]
# gain = 1.0

cancel poles and zeros

cancel pairs of identical poles and zeros in a transfer function as follows:

g = s * (s+1) / ((s+3) * s * (s+1) ^ 2)
pole_zero_cancellation(g) # 1 / ((s+3) * (s+1))

note that this cancellation is not done automatically.

under the hood, we compare all pairs of poles and zeros to look for identical pairs via isapprox. after removing identical pole-zero pairs, we reconstruct the transfer function from the remaining poles, zeros, and k-factor. we ensure that the coefficients in the resulting rational function are real.

the order of a transfer function

we can find the order of the polynomials in the numerator and denominator of the rational function comprising the transfer function:

g = (s + 1) / ((s + 2) * (s + 3))
system_order(g) # (1, 2)

note that is only the apparent order; you may need to call pole_zero_cancellation to get the effective order:

g = (s + 1) / ((s + 2) * (s + 3) * (s + 1))
system_order(g) # (1, 3)
g = pole_zero_cancellation(g)
system_order(g) # (0, 2)

frequency response of an open-loop transfer function

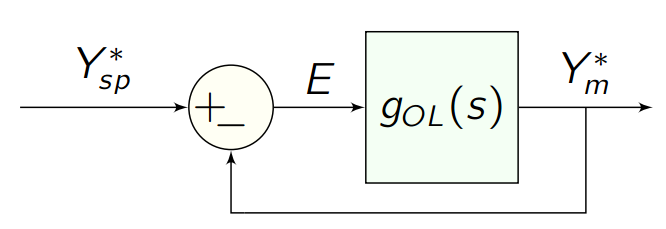

compute the critical frequency, gain crossover frequency, gain margin, and phase margin of a closed loop control system with open-loop transfer function g_ol with gain_phase_margins. for example, consider:

\[g_{ol}(s)=\dfrac{2e^{-s}}{5s+1}\]

g_ol = 2 * exp(-s) / (5 * s + 1)

margins = gain_phase_margins(g_ol)

margins.ω_c # critical freq. (radians / time)
margins.ω_g # gain crossover freq. (radians / time)
margins.gain_margin # gain margin
margins.phase_margin # phase margin (radians)

special transfer functions

(0, 1) order transfer functions

\[g(s)=\frac{K}{\tau s +1}\]

easily construct:

K = 2.0
τ = 3.0
g = first_order_system(K, τ) # 2 / (3 * s + 1)

compute time constant:

time_constant(10 / (6 * s + 2)) # 3

(0, 2) order transfer functions

\[g(s)=\frac{K}{\tau^2 s^2 + 2\tau \xi s +1}\]

easily construct:

K = 1.0
τ = 2.0
ξ = 0.1
g = second_order_system(K, τ, ξ) # 1 / (4 * s^2 + 0.4 * s + 1)

compute time constant, damping coefficient:

g = 1.0 / (8 * s^2 + 0.8 * s + 2)
τ = time_constant(g) # 2.0
ξ = damping_coefficient(g) # 0.1

detailed docs

Controlz.TransferFunction — Type

tf = TransferFunction([1, 2], [3, 5, 8])
tf = TransferFunction([1, 2], [3, 5, 8], 3.0)

Construct a transfer function representing a linear, time-invariant system.

Example

construct the transfer function:

\[G(s) = \frac{4e^{-2.2s}}{2s+1}\]

tf = TransferFunction([4], [2, 1], 2.2)

Attributes

numerator::Poly: the polynomial in the numerator of the transfer function
denominator::Poly: the polynomial in the denominator of the transfer function
time_delay::Float64: the associated time delay
